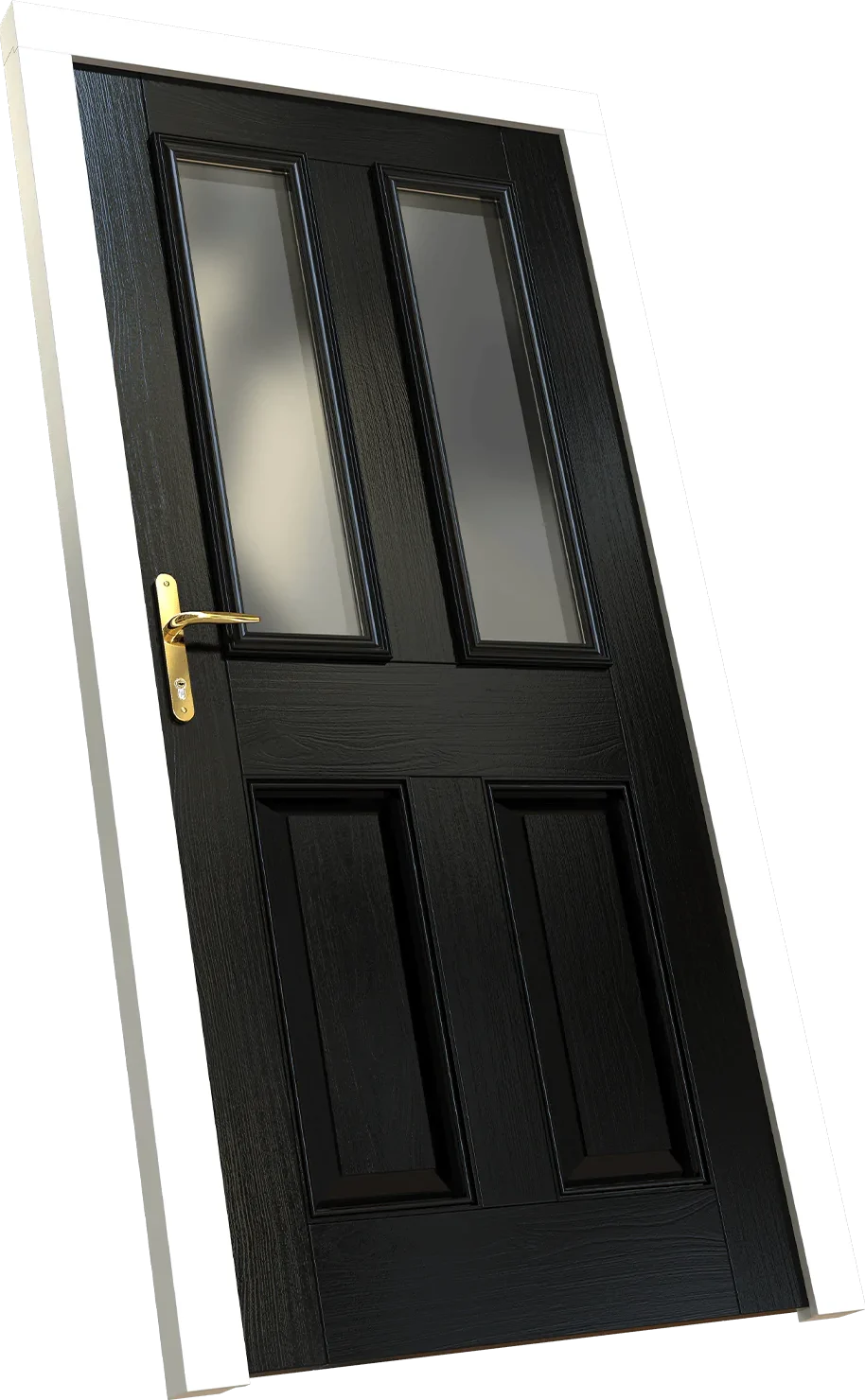

FD30 Triple Certified Composite Fire Door
✔ Triple Certified - an audited scheme that ensures these composite fire doors meet strict fire, smoke and enhanced PAS24:2016 / PAS24:2022 security standards (SBD Secured By Design).
✔ MHCLG Compliant
✔ Fire & Smoke Tested - BS EN 1634 for fire resistance and smoke control
✔ Tested up to 885 degree Celsius
Triple Certified
Whilst a successful stand alone Fire Door test demonstrates that a door meets the legally acceptable minimum standard, the BM Trada “Q” Mark third party scheme provides proof that our Fire Door range resists the passage of fire, through a programme of research and development backed up by an extensive catalogue of certified test evidence.
Extensive Testing
Each test subjects two complete door sets to the intense and rapid heat build up of a live fire scenario, with one door set installed to open towards the furnace and the other to open away from the furnace, resulting in a true bi-directionally tested door.
Following a vast amount of tests, 100% passed the required timings, with some exceeding the required times by up to 25 minutes. Bidirectional testing has been successfully completed to BS EN1634-1. Solid and glazed FD30 doors have also been tested with fixed glazed fanlight over the top of the door frame.

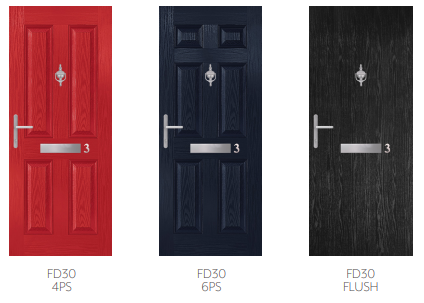

Solid Range
The range covers 3 solid FD30 door designs, all available in a choice of colour finishes, with options for furniture and locking systems which can incorporate electronic entry systems.
As well as the 3 solid FD30 door systems we also offer a range of glazed FD30 door designed, all available in a choice of colour finishes, with options for furniture and locking systems which can incorporate electronic entry systems.
Glazed Range
Colour Options

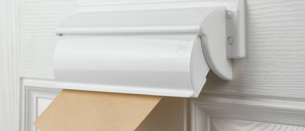

Letterbox
A Yale TS008 certified letterbox can be fitted to any of our
FD30 door styles. Independently tested as part of a door
set for both fire performance and security. Designed and
certified to not only offer protection against fire but proved to
protect against attack methods meeting the stringent security
standards of TS008.

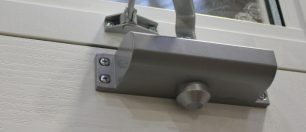

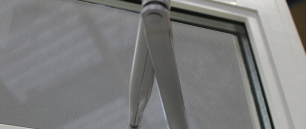

Door Closure
As standard, fitted with the Rutland TS9205 Back Check Door Closer, automatically closing the door to provide an essential fire safety barrier. A slide arm door closer is available as an upgrade offering an easy open solution ideal for the elderly or infirm

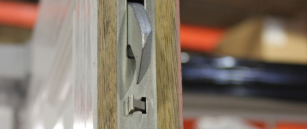

Auto lock
The Winkhaus AV2 auto locking mechanism provides automatic locking once the door is closed giving instant security, eliminating the need to lift the handle to engage the locks. A motorised version AV2E, is available as an upgrade to allow connection to access control systems ideal for communal entrances and DDA applications.

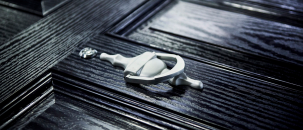

Door Knockers
To enhance the appearance and functionality of the door a range of knockers, spyholes and door chains have been tested for compliance and can be factory fitted as required.

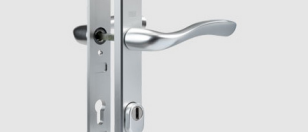

Handles
Secure, stylish and functional. Cast aluminium lever handles are fitted as standard. Increased lever length helps to reduce the required operating forces.

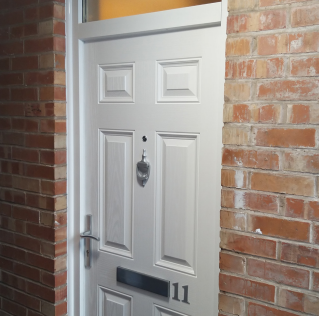

Top and side screens
Available with a glazed top light and or glazed side screens. Clear or obscure fire rated glazing. The fixed glazed top light can be either part of the frame, utilising a bespoke transom section or coupled to the main frame for increased overall height.
